![CTFHD800<b>-S</b> - HDMI 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR Remote - Audio <b>(1024x600, 1000 nits) [LED]</b> <b>-TRANSFLECTIVE PRO-</b>](http://carlcd.de/image_db/CTFHD800.jpg)
Mounting unit for CarTFT displays (to be mounted on car-specific body)

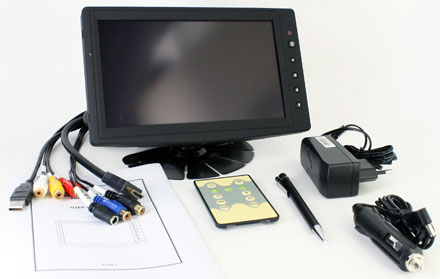

CTFHD800-S - HDMI 8" TFT - Touchscreen USB - PAL/NTSC - Autodimmer - IR Remote - Audio (1024x600, 1000 nits) [LED] -TRANSFLECTIVE PRO-
With special sunlight readable transflective TFT and Anti-Glare surface!
Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight.
For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is
[more]
| Front |
|
| Rear |
|
| Side |
|
| LCD Size | 8" |
| Aspect Ratio | 16:9 |
| VGA resolutions | 640x480-1920x1200 |
| Native resolution | 1024x600 |
| Dot resolution | 3072x600 |
| Brightness | 500 |
| VGA Input | HDMI |
| Video Input | 3x PAL/NTSC (RCA) |
| Audio Input | 2x RCA (Stereo) |
| Touchscreen | USB |
| Case color | black |
| Power Input | 12-24VDC |
| Power Consumption | 9W |
| Case size | 220 x 135 x 29 mm |
| Visible area | 172 x 104 mm |
| Certificates | CE, E1 |
| Style | On-Dash |
| yes | Adjustable backlight |
| yes | Auto Power-On |
| no | Picture In Picture |
| yes | IR Remote |
| yes | Headrest mount |
| yes | TS pencil |
| no | Earphone |
| no | Adjustable video aspect |
| yes | Mirrorable video |
| yes | Reverse camera input |
 | Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz |
