VIA Nano ITX NX15000

PRODUCT IS CURRENTLY NOT AVAILABLE !

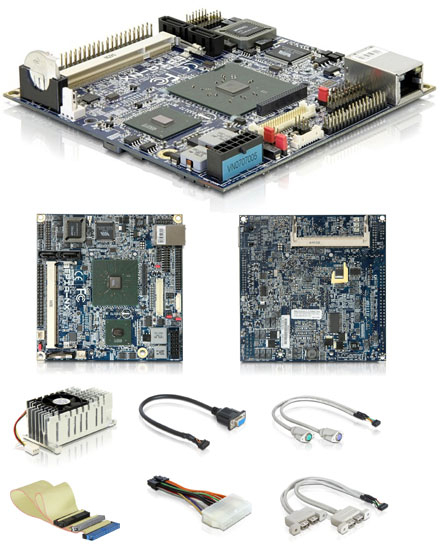

VIA Nano ITX NX15000

Designed for ultra compact embedded systems with demanding digital media requirements, such as slimline LCD PCs and digital signage, small yet powerful set top boxes and next generation car PCs, the VIA EPIA NX-series Nano-ITX mainboard boasts the latest generation 1.5GHz VIA C7® processor, or 1.2GHz VIA Eden™ processor for the fastest fanless configuration.

Packed full of advanced multimedia features through the VIA CX700M2 system media processor, the all-in-one digital media IGP chipset integrating the VIA UniChrome™ Pro II 2D/3D graphics core and an extensive array of high end audio and video technologies, including Vinyl Multi-channel HD audio, hardware MPEG-2
[more]

Share

Designed for ultra compact embedded systems with demanding digital media requirements, such as slimline LCD PCs and digital signage, small yet powerful set top boxes and next generation car PCs, the VIA EPIA NX-series Nano-ITX mainboard boasts the latest generation 1.5GHz VIA C7® processor, or 1.2GHz VIA Eden™ processor for the fastest fanless configuration.

Packed full of advanced multimedia features through the VIA CX700M2 system media processor, the all-in-one digital media IGP chipset integrating the VIA UniChrome™ Pro II 2D/3D graphics core and an extensive array of high end audio and video technologies, including Vinyl Multi-channel HD audio, hardware MPEG-2/-4 and WMV9 video decoding acceleration, and a built-in HDTV encoder up to 1080i for HD DVD playback for the richest entertainment experience.

Measuring just 12cm x 12cm, the powerful, feature-rich yet highly power efficient VIA EPIA NX Nano-ITX embedded board supports the 400MHz VIA V4 bus and integrates the VIA PadLock Security Engine, and with all the performance for today's digital media technologies and with an I/O targeted at the consumer electronics market.

The VIA EPIA NX Nano-ITX mainboard features two Serial ATA connectors for faster storage access, an Ethernet port for seamless broadband connectivity with the optional upgrade of Gigabit Ethernet, and supports up to 1GB of DDR2 400/533MHz SO-DIMM memory.

Model Name VIA EPIA NX15000G
Processor VIA C7® 1.5GHz NanoBGA2
Chipset VIA CX700M2 Unified Digital Media IGP Chipset
System Memory 1 x DDR2 533 SODIMM socket
Up to 1GB memory size
VGA Integrated VIA UniChrome™ Pro II 3D/2D AGP graphics with MPEG-2/4 and WMV9 decoding acceleration
Expansion Slots 1 x mini-PCI slot
Onboard IDE 1 x UltraDMA 133/100/66 connector (40-pin pin header)
Onboard Serial ATA 2 x SATA connectors
Onboard LAN 1 VIA VT6107 10/100 Mbps Ethernet controller
Or manufacturing option for VIA VT 6122 Gigabit Ethernet controller
Onboard Audio VIA VT1708A High Definition Audio Codec
Onboard TV Out Integrated HDTV Encoder
Onboard I/O Connectors 1 x USB pin connector for 6 additional USB 2.0 ports
1 x LPC connector
1 x LVDS pin connector, for 18/24-bit dual channel LVDS panel
1 x Module connector to support 2nd 18/24-bit dual channel LVDS panel (an add-on card is required)
1 x TV Out pin connector for Composite, S-Video and Component (YPbPr)
1 x Video connector for VGA output, CCIR656/601 video input and SMBus
1 x Audio pin connector for Line-out, Line-in, Mic-in and S/PDIF out
1 x PS2 mouse/keyboard pin connector
2 x Fan pin connectors: CPU/Sys FAN
1 x Nano-ITX power connector
Back Panel I/O 1 x RJ45 LAN port
BIOS Award BIOS
4/8Mbit flash memory
Operating System Windows XP, Linux, Win CE, XPe
System Monitoring & Management Wake-on LAN, Keyboard Power-on, Timer Power-on
System power management
AC power failure recovery
Operating Temperature 0°C ~ 50°C
Operating Humidity 0% ~ 95% (relative humidity; non-condensing)
Form Factor Nano-ITX (8-layer)
12 cm x 12 cm
Special Features 2 Dual-Channel LVDS Panel support. (with one daughter card needed for the additional LVDS Panel)
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 3 ratings
2 von 5 Sternen from razvz am 13.12.2009 | See all my comments

This nanoITX mobo seems to be appropriate for a lot of embedded uses, however it's not clear how well it'd handle an OS like Windows 7.

Moreover, there are Atom COMs (computer on module) which
seem to be cheaper than this motherboard (smaller, too).

There seems to be some issue with VIA's motherboards: they're more expensive than anything similar from Intel. Even the regular mini-ITX motherboards are more expensive than the Atom motherboards.

Perhaps VIA should update their prices to reflect the current market's prices?

5 von 5 Sternen from radu81 am 30.06.2009 | See all my comments

pure io ce l'avevo sul mio carpc, ottima scheda ma il prezzo è un po alto

3 von 5 Sternen from kvegeta am 01.04.2009 | See all my comments

La migliore scheda madre presente sul mercato per dimensioni e potenza! Riesce a far girare egregiamente emulatori e far girare filmati in 720p oltre che garantire uno startup del pc velocissimo!
