Commell LV-677 (for Core Duo/Core Single) [without I/O shield, without accessoiry]

PRODUCT IS CURRENTLY NOT AVAILABLE !

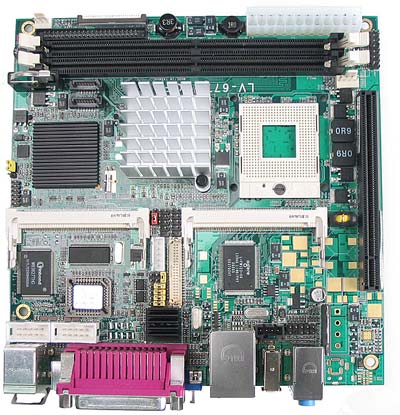

Commell LV-677 (for Core Duo/Core Single) [without I/O shield, without accessoiry]
  • Intel Core Duo & Single
  • Ideal for M2-ATX
  • Mini-PCI slots
  • Compact Flash

- for Intel Core Duo / Core Single CPUs with 533/677 MHz FSB, FC-PGA478
- 2x 240-pin DIMM socket (DDR-II 533/677, bis 3GB)
- 1x 44-pin Standard-IDE Port
- 1x Compact Flash (Typ II, Unterseite)
- 1x PCI-express
- 2x SATA
- 2x Mini-PCI
- 1x Gigabit LAN
- Graphics adapter onboard (Intel GMA 950)
- Sound onboard (Realtek ALC880)
- Standard 24pol-ATX power connector
- TV-Out

Scope of supply :
- LV677 mainboard


Specifications :


Share

CPU Intel Core Duo @ 533/667 FSB
Graphics Intel GMA 950
Formfactor ITX (17x17cm)
RAM 2x DDR-II 533/667
Audio Realtek ALC880 5.1 channel
Base Intel ITX
USB 6x USB 2.0
Firewire 1x
IDE/SATA 1x IDE, 2x SATA
LAN 1x 10/100/1000 Mbit
Parallel --
Serial 2x
yes TV-Out
no PCI
yes Mini-PCI
yes IDE
no DVI
yes 800x480 Resolution
no Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
yes Compact Flash
Form Factor Mini-ITXexpress Motherboard (170 x 170 mm)
CPU Intel CoreTM Duo processor @ 533 / 667 MHz FSB
Memory 2 x DDR2 533/667 MHz SDRAM up to 3.0 GB
Chipset Intel 945GM & ICH7M
Real Time Clock Chipset integrated RTC with onboard lithium battery
Watchdog Timer Generates a system reset internal timer for 1min ~ 255 min
Power Management ACPI 1.0 compliant, supports power saving mode
PCI Enhanced IDE 1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices
VGA Interface Intel 945GM integrated GMA(Graphic Media Accelerator) 950 Technology
Video Memory Up to 224MB shared with system memory
Serial ATA Interface 2 x Serial ATA Interface with 150 MB/s transfer rate.
Audio Interface Realtek ALC880 5.1 channel Audio
LAN Interface 1 x Intel 82537L Gigabit Ethernet
Solid State Disk IDE1 supports 44-pin DiskOnModule +5V power supply CompactFlash Type-II on the rear .
GPIO Interface Onboard programmable 8-bit digital I/O interface
Extend Interface 1 x Onboard x16 PCI-Express slot ( x1 mode compatible) 2 x Min-PCI scoket
External I/O Port 1x RJ45 LAN port, 1x DB15 VGA port, 1 x PS/2 Keyboard / Mouse ports, 1 x TV-out, 1 x IEEE 1394 ports, 2 x USB 2.0 ports, Audio, SPDIF , DC input connector ( LV-677DC version only)
Internal I/O Port 1 x RS232 & 1 x RS232/422/485, 1 x silm FDD, 1 x IrDA , 4 x USB 2.0, 1 x 8-bit GPIO, 1 x Audio, 1 x CDIN LVDS and LCD inverter connector
Power Requirement Standard 24-pin BTX power supply for LV-677 . ( 20-pin ATX is compatible) 8 V ~ 21 V full range DC input for LV-677DC .
Board Dimension 170mm x 170 mm (L x W)
Operation Temperature 0 ~ 60oC (32 ~ 140oF)
Data sheet Download (PDF)
Data sheet Print view
Manual [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 3 von 5 Sternen
Average rating, based on 2 ratings
3 von 5 Sternen from modemlamer am 10.09.2008 | See all my comments

sehr gute ausstattung, läuft sehr stabil, tv-out ab bios ist echt der hit! aber auch hier an nachteil! es bootet zu langsam! unter 12sec. allein im bios sind meines erachtens nicht möglich. deswegen nur bedingt für den carpc-bereich. ansonsten bin ich damit sehr zufrieden und habe es im wohnzimmer als MM-PC in einem altem slim-gehäuse eines DVD-players

3 von 5 Sternen from Don-Stefan am 25.12.2007 | See all my comments

ich als computerfrize kann nur sagen hammer die ausstattung auf einem mainboard von der größe ist echt genial
