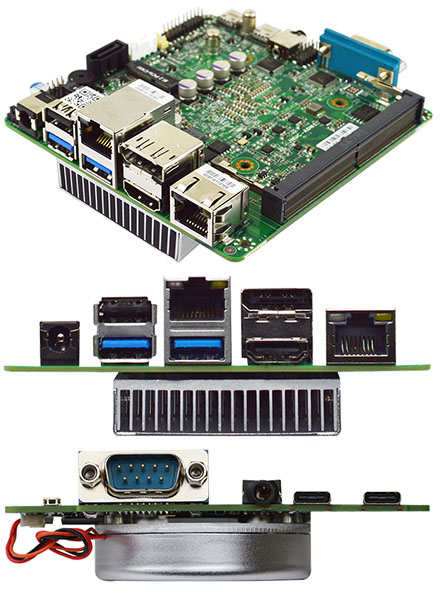

Jetway JNUC-ADN1-N97000 NUC Mainboard (Intel N97 Processor, TDP 12W, 2x LAN)

Jetway JNUC-ADN1-N97000 NUC Mainboard (Intel N97 Processor, TDP 12W, 2x LAN)
  • Intel N97 !
  • 2x LAN !
  • NUC Format !

  • 1* DDR5 4800MHz SODIMM Slot, up to 16GB
  • 1* HDMI 2.0b, 1*DP1.4, 2* Typ C DP
  • 2* 2.5GbE
  • 1* RS485/422/232
  • 4 x USB 3.2 Gen2 (2 x Type-A, 2 x Type-C DP ALT Mode), 3 x USB2
  • 1 x M.2 2260/2280 M-key, 1 x M.2 2230 E-key
  • DC Input 12-19





Share

279.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
SYSTEM
FORM FACTOR NUC
CPU Onboard Intel® Processor N-series Processors
Intel® Processor N97
*For additional compatible CPUs, please contact regional sales
CPU TDP 12W
CHIPSET Integrated with Intel® SoC
MEMORY TYPE 1 x DDR5 4800MHz, Single Channel SODIMM, up to 16GB
BIOS UEFI with Intel PTT fTPM2.0
WAKE ON LAN Yes
WATCHDOG TIMER 255 Levels
SECURITY TPM2.0 (Optional)
RTC BATTERY Lithium Battery
DIMENSION (L X W) 101mm x 101mm (4″ x 4″)
OS SUPPORT Windows® 10 (64bit), Windows® 11 (64bit)
Linux
POWER
POWER REQUIREMENT DC 12~19V
POWER SUPPLY TYPE AT/ATX
CONNECTOR External DC-in Connector
DISPLAY
CONTORLLER Intel® UHD Graphics
LVDS/eDP/MIPI-DSI —
DISPLAY INTERFACE 1 x HDMI 2.0b, up to 4K x 2K 60Hz
1 x DP1.4, up to 4K x 2K 60Hz
2 x Type C DP1.4, up to 4K x 2K 60Hz
MULTIPLE DISPLAY Support 3 Displays
AUDIO
CODEC Realtek ALC897
AUDIO INTERFACE Line-out/MIC
SPEAKER —
EXTERNAL I/O
ETHERNET 2 x Intel® i225V, 10/100/2500Base
USB 2 x USB3.2 Gen 2
2 x USB3.2 Gen 2 Type C support ALT mode
1 x USB2.0
SERIAL PORT 1 x RS232/422/485
VIDEO 1 x HDMI 2.0b
1 x DP1.4
2 x Type C DP1.4
INTERNAL I/O
USB 2 x USB2.0
GPIO 8-Bit
SMBUS Yes
FAN 1 x CPU Fan
SIM —
FRONT PANEL PWR LED
Power Button
OTHERS 1 x Chassis intrusion
1 x AT mode
STORAGE
SATA 1 x SATA3
1 x SATA Power Connector
MINI PCI-E/MSATA —
M.2 1 x M-Key 2260/2280 (SATA/PCIe 3.0 x2) support NVMe
eMMC eMMC 64GB (optional)
EXPANSION
M.2 1 x E-key 2230 (USB2.0/PCIe 3.0×1) support CNVio
OTHERS —
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE -20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE -20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY 10% ~ 90% relative humidity, non-condensing
CERTIFICATION Meet CE/FCC Class A
Data sheet Download (PDF)
Data sheet Print view
