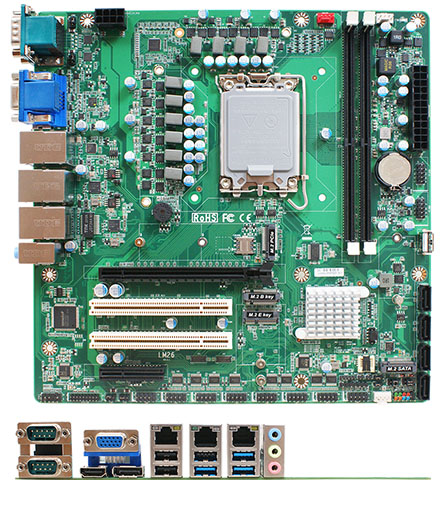

Jetway JLM26-H6100 Micro-ATX (Intel Sockel LGA1700 H610, 2x COM, 3x LAN, 3x Displaysupport)

Jetway JLM26-H6100 Micro-ATX (Intel Sockel LGA1700 H610, 2x COM, 3x LAN, 3x Displaysupport</b>)
  • H610 !
  • 2x COM !
  • Micro-ATX !
  • 3x LAN / 3x Display !

  • 1. Intel® 12/13th LGA1700 Socket Processor (Max.125W TDP)
  • Intel® Alder Lake-S H610E / H610 Chip
  • 2* DDR4 3200MHz UDIMM up to 64GB
  • 1* VGA, 1* HDMI, 1* DP
  • 2* 2.5GbE, 1* GbE
  • 10 or 6* COM, 3* USB3.2 (Gen.1), 7* USB2.0, 1* USB2.0 Type-A (Vertical)
  • 1* M.2 M-key, 2242/2280 (PCI-Ex4), 1* M.2 M-key, 2242/2280 (SATA), 1* M.2 B-key, 3042/3052,1* M.2 E-key, 2230, 4* SATAIII
  • 1* PCI-Ex16 (Gen.4), 1* PCI-Ex4 (Gen.3), 2* PCI
  • Onboard TPM2.0 (Option)
  • ATX Power





Share

309.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
Model – LM26-H6100 (10* COM)
– LM26-H6102 (10* COM, TPM2.0)
– LM26-H6100-6C (6* COM)
– LM26-H6102-6C (6* COM, TPM2.0)
Form Factor – Micro ATX (244 * 244mm)
Processor System – Intel® 12/13th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 125W TDP)
– Intel® Alder lake-S H610 or H610E chipset
– AMI Flash ROM BIOS
Memory – 2* DDR4 3200MHz Dual Channel UDIMM up to 64GB
Storage – 4* SATAIII (6 Gb/s, SATA4 Co-lay M.2 M key-M2)
– 1* M.2 M-key (2242/2280 PCI-Ex4 Gen.3 interface, Co-lay PCI-Ex4)
– 1* M.2 M-key (2242/2280 SATA interface, Co-lay SATA4)
Expansion – 1* M.2 B-key (3042/3052, USB3.0/USB2.0, Support 4G/5G Module)
– 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, Support WIFI/BT Module)
– 1* PCIe 4.0 x16 slot
– 1* PCIe 3.0 x4 slot
– 2* PCI slots
Ethernet – 2* Intel® i225-V 100/1000/2500Mbps
– 1* Intel® i219-V 10/100/1000Mbps
Graphics – Intel® UHD Graphics, shared memory
– 1* HDMI2.0 (Max Resolution: 4096×2304@60Hz)
– 1* DP1.4 (Max Resolution: 7680×4320@60Hz)
– 1* VGA (Max Resolution: 2560×1600@60Hz)
– Support Triple Displays
Audio – HD audio: Realtek ALC888S
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 4* USB2.0 (PH2.54)
– 1* USB2.0 (Vertical)
– LM26-H610: 8* RS232
– LM26-H610-6C: 4* RS232
– 16bit GPIO (5V)
– 4* SATAIII (SATA4 Co-lay M-key-M2)
– 1* 24+8pin Power connector
– 1* SIM Card hold
– 1* Chassis intrusion
– 1* FP_ Audio
– 1* PS/2 + 1* SMBUS + 1*AT model
– 1*CPU FAN Header(Smart FAN) + 2*SYSTEM FAN Header
External I/O – 3* USB3.2(Gen.1)
– 3* USB2.0
– 1* VGA
– 1* HDMI2.0
– 1* DP1.4
– 2* COM (RS232/422/485)
– 3* RJ45
– 1* 3Jack (Line-in + Line-out + MIC)
Power ATX PWR (24+8pin), AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH (Option)
Temperature – Operating Temperature: -10 ~ 60° C
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10 / 11, Linux
Data sheet Download (PDF)
Data sheet Print view
