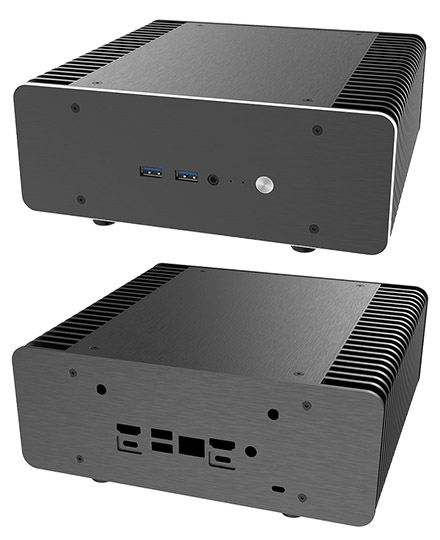

Akasa Maxwell AC Pro Encloure (for Intel NUC12/NUC13 PRO Mainboard, Fanless) [A-NUC94-M1B]

13th Gen. NUC !
FANLESS !
Premium Aluminium !
M.2 SSD heatsink !

Blending advanced passive cooling engineering and modern design to create a premium, silent and compact case for Intel® NUC 13 Pro (Arena Canyon). The perfect choice for home, office, HTPCs & audiophile environments.

Solid aluminium fanless cooling design
Designed for the Intel® NUC 13 Pro up to Core™ i7 with long-life availability
Stylish cover panels with diamond effect
Perfect for home, business and commercial applications
Lay it or hang it with optional VESA mount
Backwards compatible with Intel® NUC 12 Pro (Wall Street Canyon))

149.95 EUR
incl. 19% VAT, plus shipping
In Stock (7 pcs)

Material	Aluminium 8mm Copper heatpipes
Motherboard Types	UCFF 4" X 4"
Motherboard Support	(1) Intel® NUC 13 Pro (Arena Canyon) Mini PC / Board / Kit: NUC13L5Bi3 / NUC13ANBi3 / NUC13ANHi3 / NUC13ANKi3 / NUC13L3Hi3 / NUC13L3Ki3 / NUC13ANKi30WC NUC13L5Bi5 / NUC13ANBv5 / NUC13L5Bv5 / NUC13ANBi5 / NUC13ANHi5 / NUC13ANKi5 / NUC13L3Hv5 / NUC13L3Kv5 / NUC13ANKi50WC NUC13L5Bv7 / NUC13ANBi7 / NUC13ANHi7 / NUC13ANKi7 / NUC13L3Hv7 / NUC13L3Kv7 / NUC13ANKi70QC (2) Intel® NUC 12 Pro (Wall Street Canyon) Mini PC / Board / Kit: NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7 NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5 NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3
Maximum TDP Support	40 W
Dimensions	218.5 x 206 x 80.3 mm (W x D x H)
Drive Bays	2.5” SSD/HDD x 1 (up to 9.5mm)
Front I/O Opening	Power button, USB Type-A port x2, 3.5mm audio jack
Rear I/O Opening	DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1
Antenna Fitting Holes	2
Security	Kensington lock
Optional Power Adapters	120W, 19V for Core i7 and i5 90W, 19V for Core i3
Product Code	A-NUC94-M1B

Data sheet	Download (PDF)
Data sheet	Print view
Akasa Catalogue	Download (PDF)
