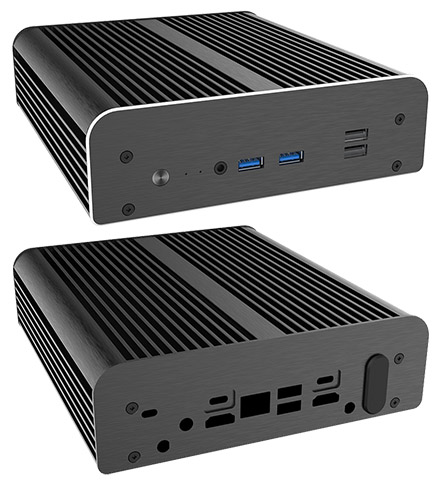

Akasa Newton WS Encloure (for Intel NUC11/12/13) [A-NUC92-M1B]

Akasa Newton WS Encloure (for Intel NUC11/12/13) <b>[A-NUC92-M1B]</b>

For NUC11/12/13 !
FANLESS !
Premium Aluminium !

Fanless case for Intel NUC 11, 12 or 13 Pro models (Tiger Canyon / Wall Street Canyon / Arena Canyon)

Full interface
VESA mounting support
Accommodates 2.5" SATA HDD/SSD

119.95 EUR
incl. 19% VAT, plus shipping
In Stock (11 pcs)

Material	Aluminium
Motherboards Types	UCFF 4" X 4"
Motherboard Support	(1) Intel® NUC 13 Pro (Arena Canyon) Mini PC / Board / Kit: NUC13L5Bi3 / NUC13ANBi3 / NUC13ANHi3 / NUC13ANKi3 / NUC13L3Hi3 / NUC13L3Ki3 / NUC13ANKi30WC NUC13L5Bi5 / NUC13ANBv5 / NUC13L5Bv5 / NUC13ANBi5 / NUC13ANHi5 / NUC13ANKi5 / NUC13L3Hv5 / NUC13L3Kv5 / NUC13ANKi50WC NUC13L5Bv7 / NUC13ANBi7 / NUC13ANHi7 / NUC13ANKi7 / NUC13L3Hv7 / NUC13L3Kv7 / NUC13ANKi70QC (2) Intel® NUC 12 Pro (Wall Street Canyon) Mini PC / Board / Kit: NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7 NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5 NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3 (3) Intel® NUC 11 Pro (Tiger Canyon) Mini PC / Board / Kit: NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3 NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5 / NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5 NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7 / NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7
Dimensions	176.6 x 200 x 53.6mm (W x D x H)
Drive Bays	2.5" SSD/HDD (up to 9.5mm high)
Front I/O	Power button, power and HDD led, USB 3.2 port x2, USB 2.0 port x2, audio jack (Only for Intel® NUC 12 Pro (Wall Street Canyon) and Intel® 13 Pro (Arena Canyon, NUC 11 Pro does not have an audio Jack)
Rear I/O	DC-In port, HDMI port x2, USB Type-A x2, USB Type-C x2, LAN port, Serial Port x1 (Only for Intel® 11 Pro (Tiger Canyon) has an internal serial port for serial cable connectivity)
Antenna Fitting Holes	2
Security	Kensington lock
VESA Mounting	Support
Product Code	A-NUC92-M1B

Data sheet	Download (PDF)
Data sheet	Print view
Akasa Catalogue	Download (PDF)
