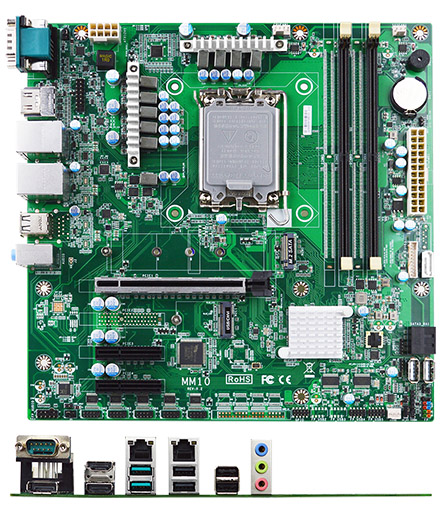

Jetway MM10-H6100 Micro-ATX (Intel Alder Lake, LGA1700) [2x LAN, 2x HDMI, 1x COM]

Jetway MM10-H6100 Micro-ATX (Intel Alder Lake, LGA1700) [2x LAN, 2x HDMI, 1x COM]
  • Intel Alder / Raptor Lake !
  • Micro ATX !
  • 2x LAN !
  • LGA1700 ! DDR5 !

The JETWAY MM10-H6100 Series is Micro-ATX form factor board which adopts the Intel® 12/13th generation Core i9/i7/i5/i3, Pentium & Celeron Processor. The board supports two UDIMM DDR5 4800MHz memory, up to 64GB. Featuring the integrated Intel® & Realtek Ethernet controller, the MM10-H6100 Series offers two 10/100/1000 Base-TX Ethernet devices for network transmission. Three SATAIII (6Gb/s) interface and one M.2 M-key (2242/2260/2280/22110, SATA interface) offer storage devices. One M.2 E-key (2230, USB2.0 interface), two USB3.2 Gen.2 ports, one USB3.2 Gen.1 port, eleven USB2.0 ports, and six COM ports for versatile expansion. The 1* PCIex16 and 2* PCIe x4 slots provides different type expa [more]

Share

329.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart

The JETWAY MM10-H6100 Series is Micro-ATX form factor board which adopts the Intel® 12/13th generation Core i9/i7/i5/i3, Pentium & Celeron Processor. The board supports two UDIMM DDR5 4800MHz memory, up to 64GB. Featuring the integrated Intel® & Realtek Ethernet controller, the MM10-H6100 Series offers two 10/100/1000 Base-TX Ethernet devices for network transmission. Three SATAIII (6Gb/s) interface and one M.2 M-key (2242/2260/2280/22110, SATA interface) offer storage devices. One M.2 E-key (2230, USB2.0 interface), two USB3.2 Gen.2 ports, one USB3.2 Gen.1 port, eleven USB2.0 ports, and six COM ports for versatile expansion. The 1* PCIex16 and 2* PCIe x4 slots provides different type expansion choice. The MM10-H6100 Series offers two HDMI2.0 port, one VGA port, one DP1.4 port which can support 3 independent displays. With the above features, MM10-H6100 Series is suitable for Industrial PCs, Factory Automation, Public Sector, Digital Security, and Surveillance applications.

  • Intel® 12/13th LGA1700 Socket Processor (Max. 125W TDP)
  • 2* DDR5 4800MHz UDIMM up to 64GB
  • 2* GbE
  • 2* HDMI, 1* DP, 1* VGA
  • 6* COM (COM1 support RS232/422/485)
  • 2* USB3.2 Gen.2, 1* USB3.2 Gen.1, 11* USB2.0
  • 1* PCIe x16 slot, 2* PCIe x4 slot, 1* M.2 M-Key (2242/2260/2280/22110, SATA interface), 1* M.2 E-Key (2230, USB2.0 interface) support CNVi
  • 3* SATAIII (SATA2 support SATA DOM)
  • Support onboard TPM 2.0 (MM10-H6102 only)


Model – MM10-H6100
– MM10-H6102 (onboard TPM2.0)
Form Factor – Micro-ATX (244 x 244mm)
Processor System – Intel® 12/13th LGA1700 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 125W TDP)
– Intel H610 Express chipset
– AMI 256Mb Flash ROM BIOS
Memory – 2* Dual CH non-ECC DDR5 4800MHz SDRAM UDIMM up to 64GB
Storage – 3* SATAIII (SATA2 support SATA DOM)
– 1*M.2 M-Key (2242/2260/2280/22110, SATA interface)
Expansion – 1*M.2 E-Key (2230, USB2.0 interface) support CNVi
– 1* PCIex16 slot
– 2* PCIex4 slot
Ethernet – 1* Intel i219V GbE
– 1* Realtek RTL8153 GbE
Graphics – Intel® HD Graphics, shared memory
– 1* DP 1.4a (Max Resolution: 4096×2304@60Hz)
– 2* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 1* VGA (Max Resolution: 1920×1200@60Hz)
– Support Triple Displays
Audio – HD audio: Realtek ALC888S
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 1* USB 3.2 (Gen.1)
– 5* USB 2.0
– 2* USB 2.0 type A vertical connector
– 3* SATAIII
– 5* COM (RS232)
– 1* VGA
– 1* M.2 M-key (2242/2260/2280/22110, SATA interface)
– 1* M.2 E-key (2230, USB2.0 interface) support CNVi
– 1 * PS/2
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM2.0 (MM10-H6102)
External I/O – 2* HDMI
– 1* DP
– 2* RJ45 Ethernet
– 2* USB 3.2 (Gen. 2)
– 4* USB 2.0
– 1* COM (RS232/422/485)
– Line-in, Line-out, MIC
Power ATX PWR (8 + 24 pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH
Temperature – Operating Temperature: -10 ~ 50° C
– Storage Temperature: -20 ~ 85° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
