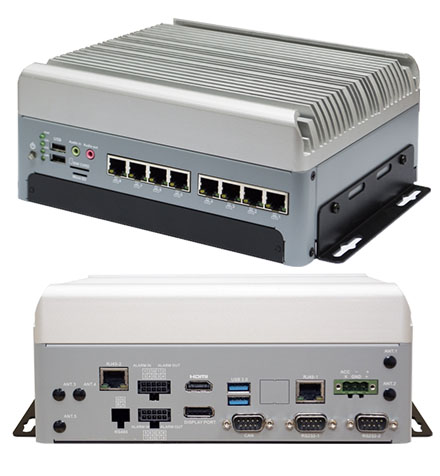

EverFocus eNVP-JAX-AI-V0008 BoxPC (NVIDIA Jetson AGX Xavier 32GB) [8x POE]

EverFocus eNVP-JAX-AI-V0008 BoxPC (NVIDIA Jetson AGX Xavier 32GB) [8x POE]
3D 360° View
  • NVIDIA Jetson Xavier !
  • 8x PoE Camera Support !

  • NVIDIA Jetson® AGX Xavier AI BOXFanless AI edge embedded box PC
  • 8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
  • 512 NVIDIA CUDA cores and 64 Tensor cores (VoltaTM architecture)
  • Onboard 32 GB 256-bit LPDDR4x 136.5GB/s
  • Supports PoE connectors x 8, Giga LAN ports x 2
  • Supports M.2 2280M key for NVMe SSD x1
  • Supports SATA port x 2, SD Card x 1
  • Supports M.2 x 1 3042 or 3052 B key for 4G or 5G module
  • Supports M.2 x 1 2230 for WiFi / BT module
  • Supports CAN Bus x 1 / RS232 x 2(SKU1) /RS232 x1,RS485 x 1 (SKU2)
  • Supports GPS x 1, Alarm In x 8, Alarm Out x 8Supports 9V to 36V wide-range DC input

[more]

Share

2669.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)
Add to cart

  • NVIDIA Jetson® AGX Xavier AI BOXFanless AI edge embedded box PC
  • 8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
  • 512 NVIDIA CUDA cores and 64 Tensor cores (VoltaTM architecture)
  • Onboard 32 GB 256-bit LPDDR4x 136.5GB/s
  • Supports PoE connectors x 8, Giga LAN ports x 2
  • Supports M.2 2280M key for NVMe SSD x1
  • Supports SATA port x 2, SD Card x 1
  • Supports M.2 x 1 3042 or 3052 B key for 4G or 5G module
  • Supports M.2 x 1 2230 for WiFi / BT module
  • Supports CAN Bus x 1 / RS232 x 2(SKU1) /RS232 x1,RS485 x 1 (SKU2)
  • Supports GPS x 1, Alarm In x 8, Alarm Out x 8Supports 9V to 36V wide-range DC input


Model name eNVP-JAX-AI-V0008
Processor

8-core NVIDIA Carmel Arm®v8.2 64-bit CPU
Main Memory 512-core NVIDIA Volta™ GPU with 64 Tensor Cores
Format H.265 / H.264
Video Input Based on the installed software EverFocus AiO NVR: up to 8ch
Video Output
HDMI x 1 (2.0 maximum 3840 x 2160); Display Port x1
Ethernet GbE port x 2 POE : 10/100 MbE x 8 /PoE (802.3af with 65W)
WiFi

WIFI Support M.2 E-Key (optional)
4G / 5G 4G / 5G Support M.2 B-Key 3042 or 3052 (optional
Power Supply DC 9-36V (3-pin terminal block)
Dimensions (WxDxH) 242 x 177 x 94 mm
Gross Weight

4.5kg
Operating Temperatur -40°C ~ 60°C (-40°C ~ 75°C with fan)
Storage Temperature -40°C ~ 85°C
Storage Humidity 10% ~ 90% (non-condensing)
Vibration / Shock

MIL-STD-810G, Method 514.7, Category 4 MIL-STD-810G, Method 516.7, Procedure I (Shock)
Certification CE/ FCC Class A, according to EN 55032 & EN 55035 [EN50155, UL, BSMI, PSE, other (By Project) ]
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Manual [EN] Download
