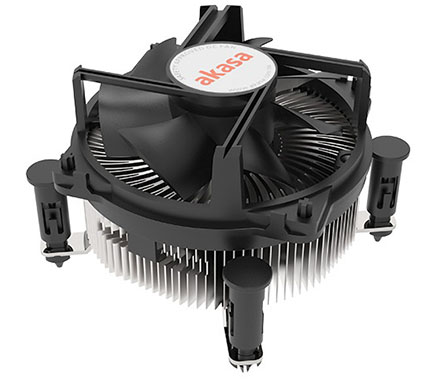

AKASA heatsink/fan f. Intel socket LGA 1700 (AK-CC6606BP01)

AKASA heatsink/fan f. Intel socket LGA 1700 (AK-CC6606BP01)
  • High quality !
  • LGA1700 !
  • Aluminium with copper core !
  • AK-CC6606BP01 !

  • Die Höhe des Kühlers beträgt nur 63,2 mm
  • Großer Kupferkern in voller Höhe für schnelle Wärmeableitung
  • Kompatibel mit Intel® LGA 1700
  • Intelligentes PWM und leiser Lüfter
  • Rauscharmer und langlebiger 90-mm-PWM-Lüfter








    • Lo-Noise and Efficient Cooling
    Combines lo-noise, efficient cooling with great value. Designed to work with CPU’s up to 125W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.

    Intelligent and Optimised Design
    Hi-performance and engineered alumi [more]

    Share

29.95 EUR
incl. 19% VAT, plus shipping
In Stock (6 pcs)
Add to cart

  • Die Höhe des Kühlers beträgt nur 63,2 mm
  • Großer Kupferkern in voller Höhe für schnelle Wärmeableitung
  • Kompatibel mit Intel® LGA 1700
  • Intelligentes PWM und leiser Lüfter
  • Rauscharmer und langlebiger 90-mm-PWM-Lüfter








    • Lo-Noise and Efficient Cooling
    Combines lo-noise, efficient cooling with great value. Designed to work with CPU’s up to 125W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.

    Intelligent and Optimised Design
    Hi-performance and engineered aluminium heatsink with bi-ped fins to double the dissipation area, coupled with 90mm fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.

    New and Easy Mounting Design
    New push-pin design to cater for the Intel® LGA1700.

    Array of Compatibility
    Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.

    • Height of the cooler is only 63.2mm
    • Large full-height copper core for rapid heat dissipation
    • Compatible with Intel® LGA 1700
    • Intelligent PWM and silent fan
    • 90mm lo-noise and durable PWM fan


Socket Type Intel® LGA 1700
Cooler Dimension 94.8 x 94.8 x 63.2mm
Heatsink Material Aluminium with copper core
Thermal Design Point (TDP) Support 125W
Weight 439.1g
Installation Push Pins
Fan Dimension ∅90 x 25mm
Fan Speed 500-3400 RPM (PWM controlled)
Max Airflow 40.90 CFM
Max Air Pressure 3.81 mmH2O
Max Noise Level 36 dB(A)
Current Rating 0.38A
Voltage Rating 12V DC
Bearing Type Twin Ball Bearing
Fan Life Expectancy 80,000 hours / 25°C
Fan Connector 4-Pin PWM
Product Code AK-CC6606BP01
Data sheet Download (PDF)
Data sheet Print view
