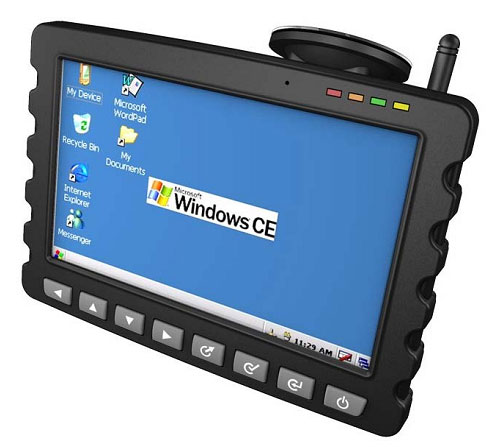

[CTFPND-5-A] 7" PND (GPRS, GPIO, Host-USB, 3x RS232, 800x480) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
[CTFPND-5-A] 7" PND (<b>GPRS</b>, GPIO, Host-USB, 3x RS232, 800x480) *new*
3D 360° View
  • GSM/GPRS
  • 4x IO, 1x Host USB
  • LED backlight !
  • 3x RS232 !

The CTFPND-5 is a 7" Touchscreen PND on Windows CE 5.0 basis with integrated GPS receiver and GSM/GPRS modem. Therefor the CTFPND-5 is the perfect plattform for your telematics application. The extra-high native resolution of 800x480 enables a perfect viewing quality.

This device also is equipped with 4x IO, 1x Host-USB and 3x RS232.

The 8 buttons (with LED backlight) at the front can be used in your software application.

Note : This PND is an offer primarily meant for business and project customers. End consumers should only consider purchasing this device when they have appropriate experience.



Share

Hardware
CPU ARM926EJ 400 Mhz (32bit RISC)
Flash ROM 2 GB NAND Flash
SDRAM 64 MB DDR-II
TFT LCD 7" Touchscreen (16M colors, LED backlight)
Resolution 800x480
GSM/GPRS Integrated (Siemens Tri-Band 900/1800/1900Mhz)
Support Voice/SMS/CS Data/GPRS mode
RS232 2x 3-wired DMA-based operation UART
1x UART fully compatible 16C550
Speaker Integrated
Memory slot SD/MMC
GPS Integrated
Battery Built-in rechargeable Li-Polymer, 2200mAh
Connectors - 2x RS232
- 1x GPIO
- 2x USB device
- 1x USB host
- 1x DC Power
- 1x Power switch
- 1x JTAG (Debug/USB)
Power DC 9V-28V (12/24V DC)
USB Ports 1x USB host compatible
2x device USB
GPIO 4x photo-couple input/4x photo-couple output
Operating system WinCE 5.0
Operating temperatur -30°C to 80°C
Scope of supply - CTFPND-5-A (7" PND)
- Mounting adapter
- Power cable with open lices
- Window suction mounting unit
Data sheet Download (PDF)
Data sheet Print view
Developer Guide Download (PDF)
SDK Download
Modem AT Sheet Download
Specifications [EN] Download
Active Sync Driver Download
GPRS Guide Download
