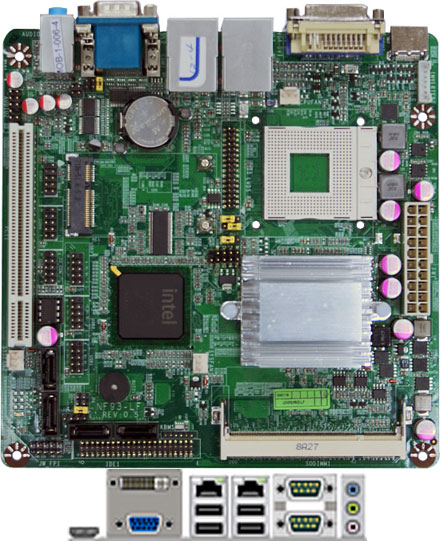

Jetway NF93R-LF (for Core2Duo FSB1066 Penryn Mobile, HDMI, DVI, 2x LAN)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Mini-PCI Express
2x LAN !
2x RS232 !
DirectX 10 !

- INTEL®GM45 +ICH9M chipset
- Build-in INTEL® GMA X4500M HD Graphics Core(For DX10)
- Supports INTEL® 45nm Penryn Mobile Processors
- Supports 2 * Gigabit LAN
- Integrated ALC888 HD Audio CODEC with 6-CH
- Onboard 18-bit dual channel LVDS connector
- Onboard DVI-D/HDMI port
- Support Watch dog Technology
- Mini-ITX Form Factor(170mm x 170mm)

Scope of supply:
- Jetway NF93-LF Mainboard
- CPU cooler/heatsink
- Driver CD
- Manual
- IDE-44pin Cable
- SATA Cable
- I/O Shield
- SP2 Cable
- Thermal Grease
- HDTV PCI Slot ad [more]

CPU	Intel Core Duo Mobile
Graphics	Intel GMA X4500HD
Formfactor	ITX (17x17cm)
RAM	2x SO-DDR-II
Audio	Realtek 888 HD Codec
Base	Intel ITX

USB	10x USB2.0
Firewire	--
IDE/SATA	1x IDE, 4x SATA (RAID)
LAN	2x 10/100/1000
Parallel	--
Serial	5x

yes	TV-Out
yes	PCI
yes	Mini-PCI
yes	IDE
yes	DVI
yes	800x480 Resolution

no	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
yes	CPU changeable
no	Compact Flash

CPU	Supports INTEL 45nm Penryn Mobile Processors Front Side Bus 1066 MHz
Chipset	INTEL®GM45+ ICH9M chipset Build-in INTEL® GMA X4500M HD Graphics Core
Memory	2 * Dual Channel SO-DIMM Sockets for unbuffered DDR2 800/667 SDRAM up to 4GB
Expansion Slot	1 * PCI slots 1 * Mini PCI-E
Storage	4 * Serial ATA2 3Gb/s connectors 1 * 44-PIN Ultra DMA 100 / 66 IDE connector for 2 IDE devices
Audio	Realtek ALC888 6-Channel HD Audio CODEC
Ethernet LAN	2 * Realtek RTL8111C PCI-E Gigabit Ethernet LAN
USB	Embedded 10 * USB 2.0/1.1
LVDS	Onboard 18-bit dual channel LVDS connector
Real Panel I/O	- 4 * USB 2.0/1.1 ports - 2 * RJ-45 ports - 1 * Audio I / O port ( Line-in, Line-out, MIC, SPDIF_OUT) - 1 * VGA port - 2 * COM port - 1 * HDMI port - 1 * DVI-D port
Internal I/O	- 3 * USB 2.0/1.1 headers for 6 USB 2.0 ports - NB / Chassis Fan connectors; - 1 * 20-pin ATX Power connector - 1 * 32-pin LVDS header - 2 * RS232 port headers & 1 * RS232/485/422 port header & 1 * GPIO header - 1 * TV-OUT header - 1 * Audio header
BIOS	Award 8MB DIP Flash ROM
Form Factor	Mini ITX Form Factor(170mmx170mm)
Funtional	ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Certificate	CE, FCC, RoHS

Data sheet	Download (PDF)
Data sheet	Print view
Manual [EN]	Download (PDF)
Specifications [EN]	Download
